AMLOGIC S905D3 quad-core 64-bit processor -
2GB/4GB LPDDR4 -
Gigabit Ethernet port -
HDMI 2.0 -
USB2.0/3.0 -
Wi-Fi5+BT 5.0，BLE -
Support eMMC: 16GB/32GB/64GB/128GB optional (onboard or module) -
Support SPI Flash: 128Mb (onboard or module)(Either eMMC or SPI Flash) -
Type-C power supply

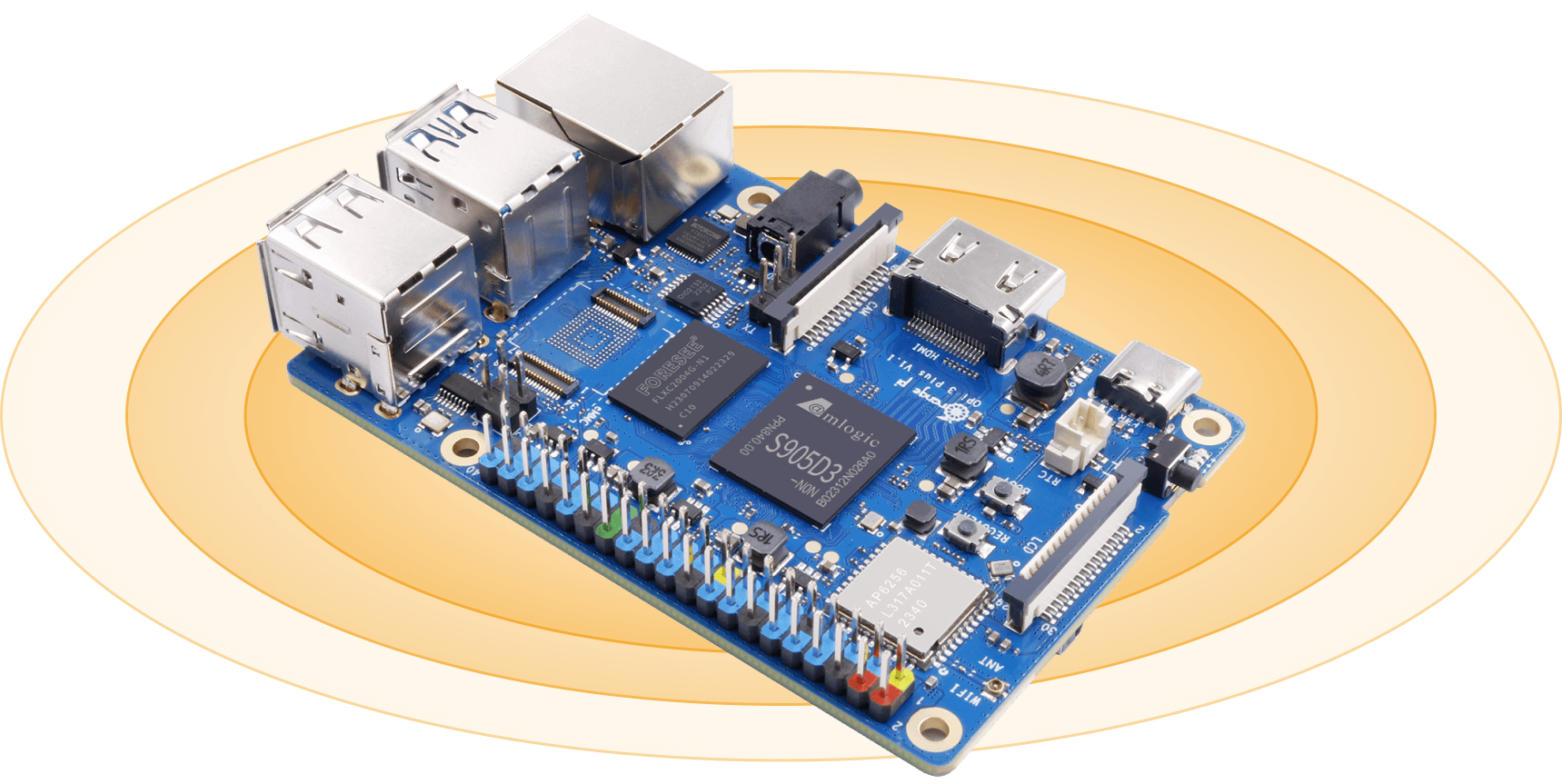

Orange Pi 3 Plus is powered by AMLOGIC S905D3 quad-core 64-bit ARM Cortex-A55 processor with 12nm advanced process, up to 1.9GHz main frequency, integrated ARM Mali G31 MP2 graphics processor, and built-in 1.2Tops arithmetic AI accelerator NPU, which can provide powerful arithmetic power for AI projects, and meet the requirements of edge computing, with 2GB/4GB LPDDR4X, supports for eMMC or SPI Flash (either one), with Wi-Fi5, BT5.0, and BLE support. Orange Pi 3 Plus references a wealth of interfaces, including HDMI output, Micro SD slot, Gigabit LAN port, USB2.0, USB3.0, 3.5mm headphone jack, MIPI DSI interface, MIPI CSI camera interface, multifunctional 40 Pin expansion interface, etc., which can be widely applied to TV box, voice recognition, voice remote control, face recognition, video analytics, edge computing, smart security, smart home and other fields, empowering rich AI applications and IoT scenarios.Orange Pi 3 Plus supports Andriod9, Ubuntu, Debian and other operating systems.
AMLOGIC S905D3

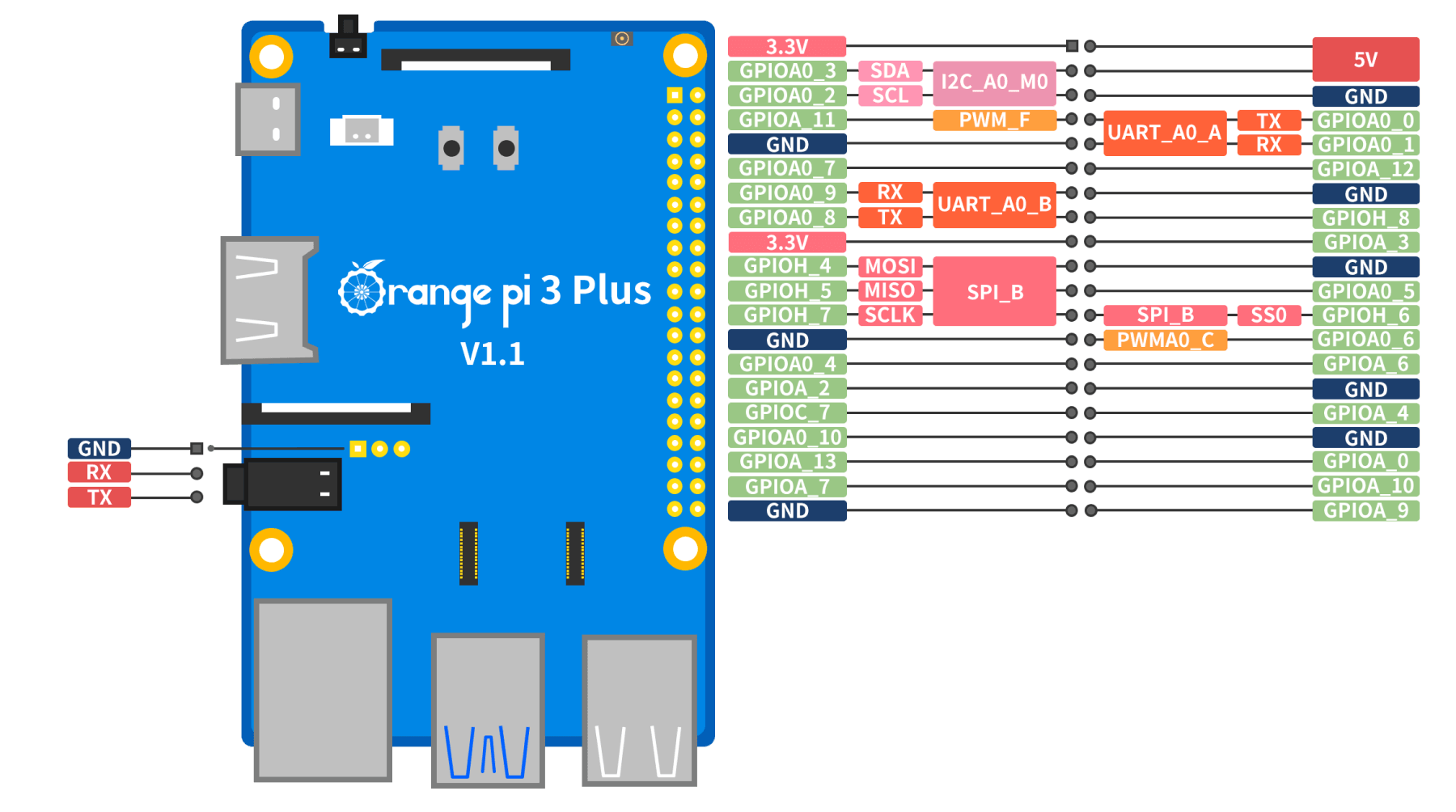

Orange Pi 3 Plus V1.1 Pin Definition
Hardware Parameters
| SoC | AMLOGIC S905D3 |
| CPU | Quad-core 64-bit ARM Cortex-A55 processor, 12nm advanced process, up to 1.9GHz main frequency |
| GPU | ARM Mali G31 MP2 graphics processor |
| NPU | Arithmetic power up to 1.2Tops |
| RAM | 2GB/4GB LPDDR4 |
| Memory |
• eMMC: 16GB/32GB/64GB/128GB optional (onboard or module) • SPI Flash: 128Mb (on board or module) (Either eMMC or SPI Flash) • Micro SD slot |
| Wi-Fi+ BT | Wi-Fi 5+BT 5.0，BLE |
| Ethernet | 10/100/1000Mbps Ethernet (on-board PHY chip: YT8531C), POE pin reserved) |
| Video Output |
• 1*HDMI TX 2.0, up to 4K@60fps • 1*2 lane MIPI DSI via FPC connector • TVOUT |
| Camera | 1*2-lane MIPI CSI camera interface without built-in ISP |
| USB |
• 1* USB 2.0 OTG • 1* USB 3.0 HOST • 2* USB 2.0 HOST |
| Audio | • 3.5mm headphone jack audio output • HDMI audio output |
| RTC | Battery back-up socket |
| Button | 1*RECOVERY key, 1*POWER key, 1*BOOT key |
| 40Pin | 40Pin function expansion interface, supporting the following interface types: GPIO、UART、I2C、SPI、PWM |
| Debugging Serial Ports | UART |
| LED | Three indicator lights |
| Power Source | Type-C 5V3A |
| Supported OS | Andriod9、Ubuntu、Debian |
| PCB Dimension | 85mm x 56mm x 17mm |
| Weight | 52g |
Product display
-

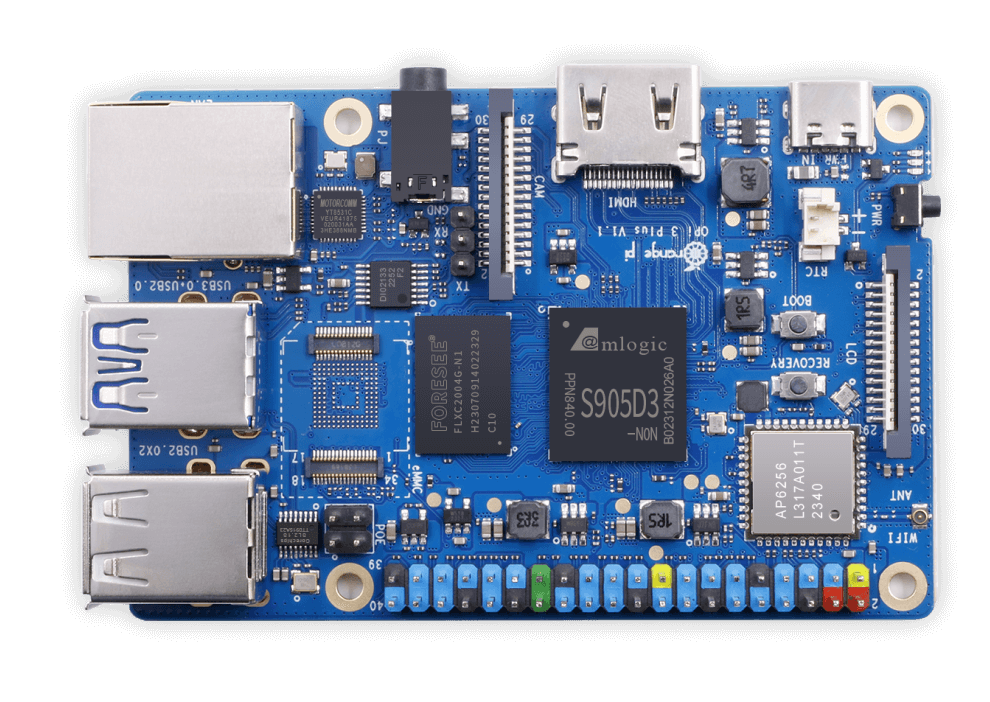

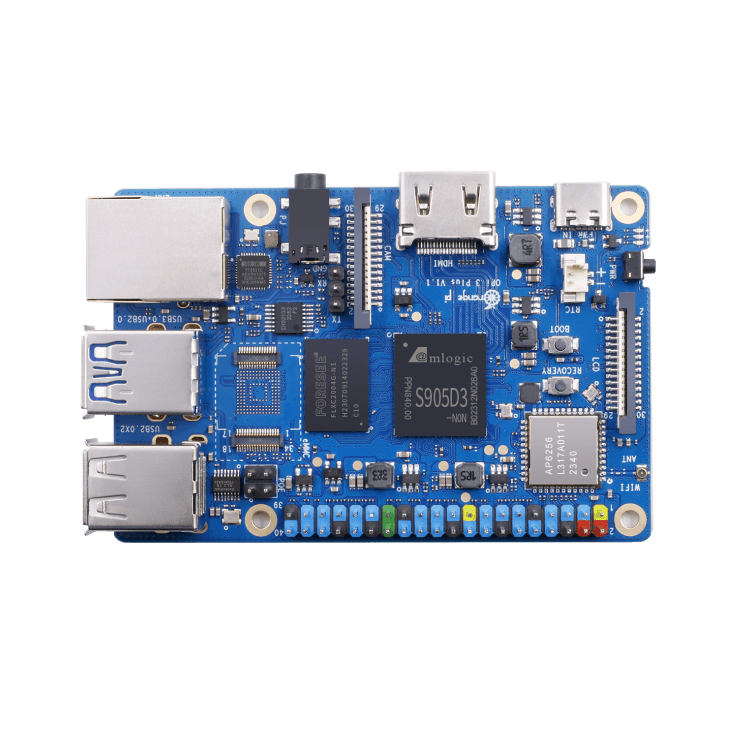

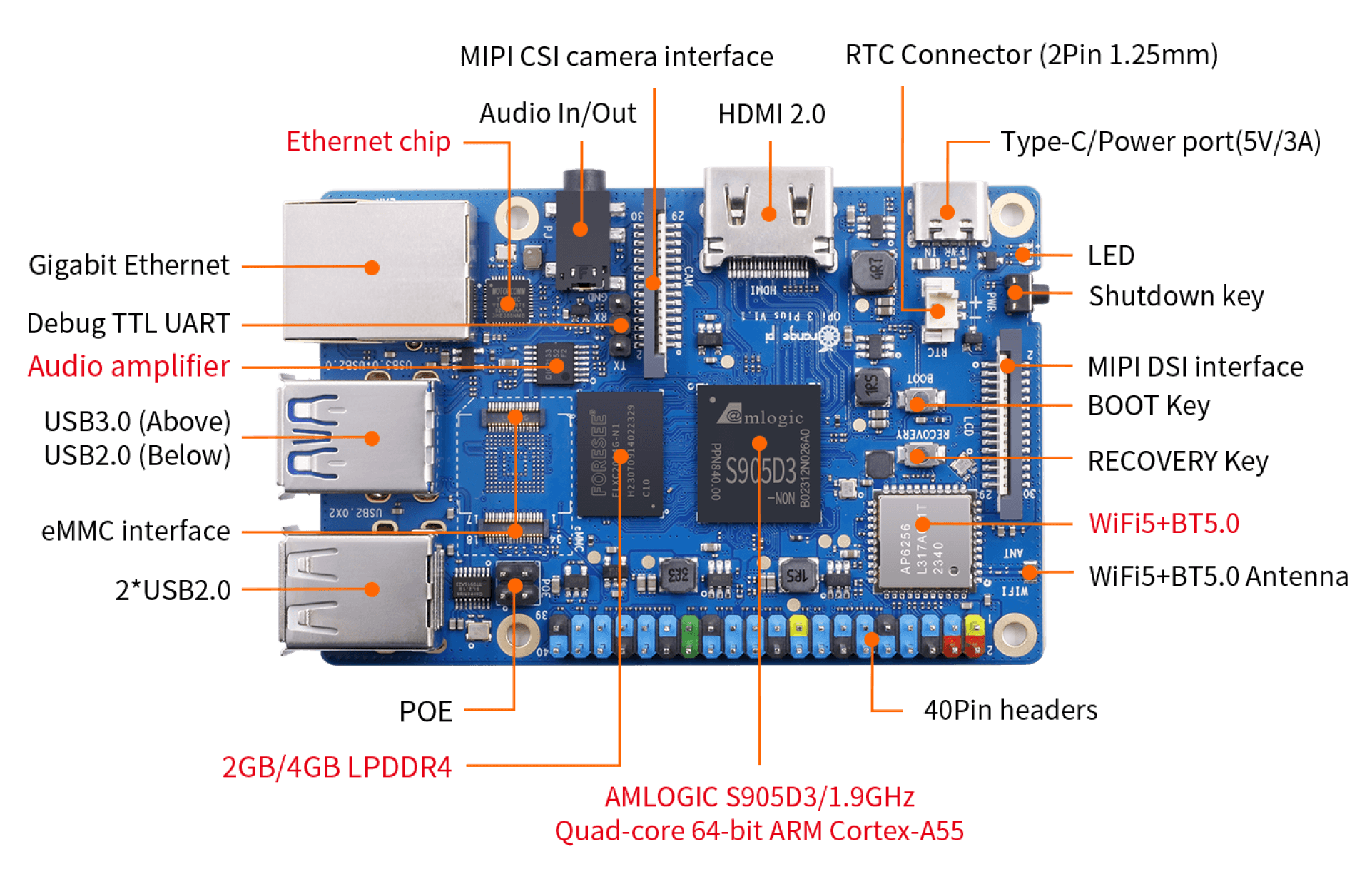

Front -

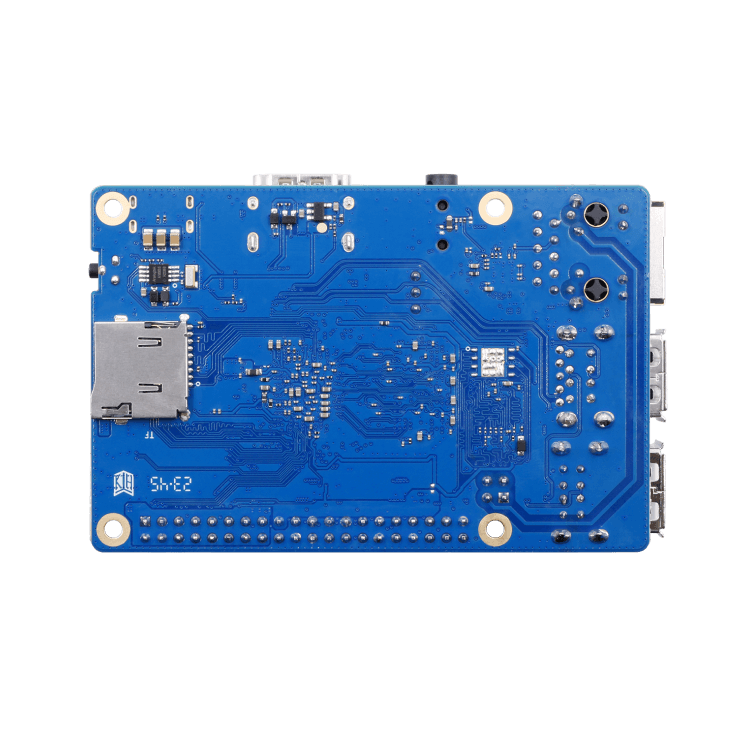

Back -

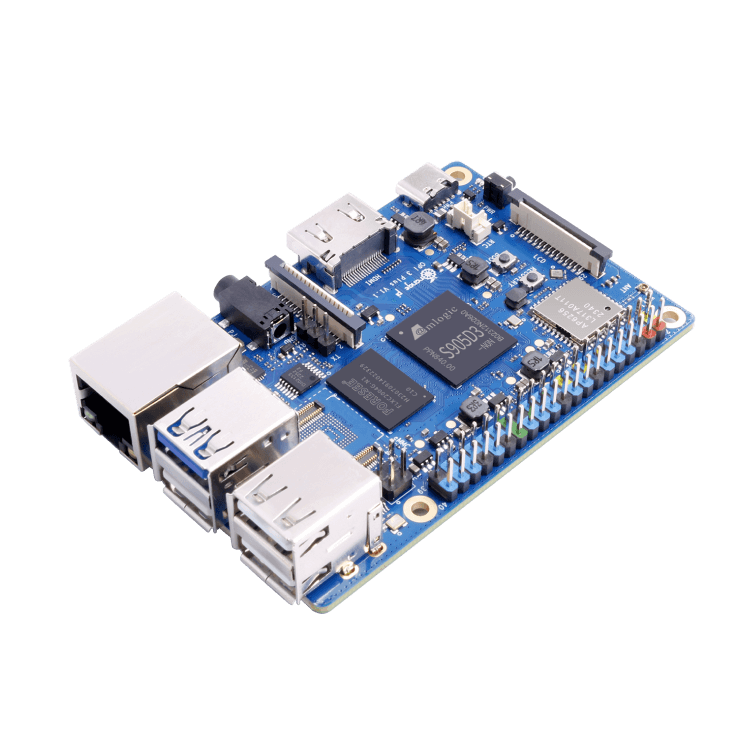

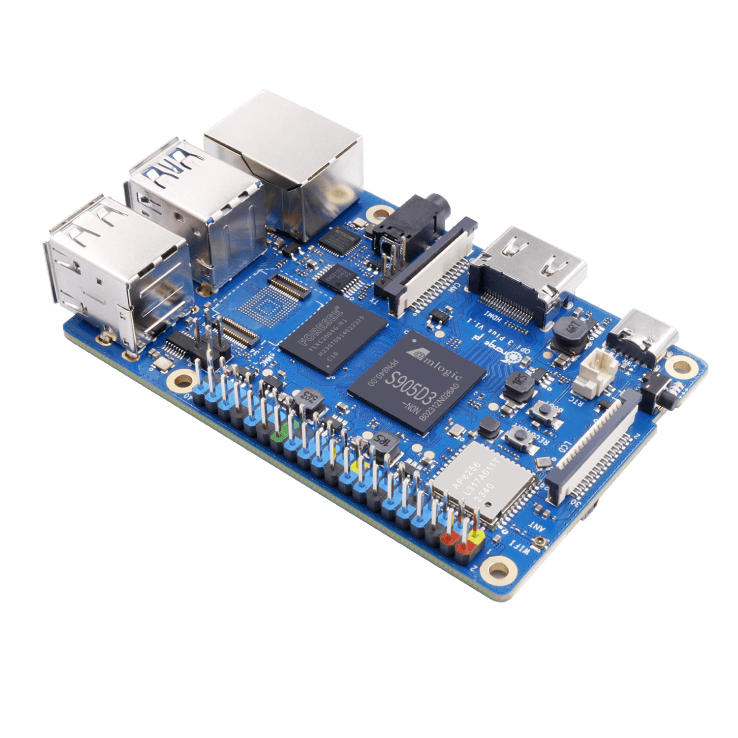

45° angle -
