Orange Pi 3 LTS is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 56X85mm.
Product introduction
USB2.0
USB3.0
2GB LPDDR3 SDRAM
8GB EMMC Flash
Type-C
HDMI output
WiFi
Bluetooth 5.0
Orange Pi 3 LTS uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 3 LTS offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.
Orange Pi 3 LTS is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
WiFi+Bluetooth
Dual-band wireless WiFi+Bluetooth 5.0, Fast networking
Orange Pi 3 LTS comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
8GB EMMC Flash
8GB EMMC Flash to meet users' higher demand for storage capacity
USB 3.0
Orange Pi 3 LTS has upgraded USB capacity: along with two USB 2 ports，you'll find one USB 3 port, which can transfer data up to ten times faster.

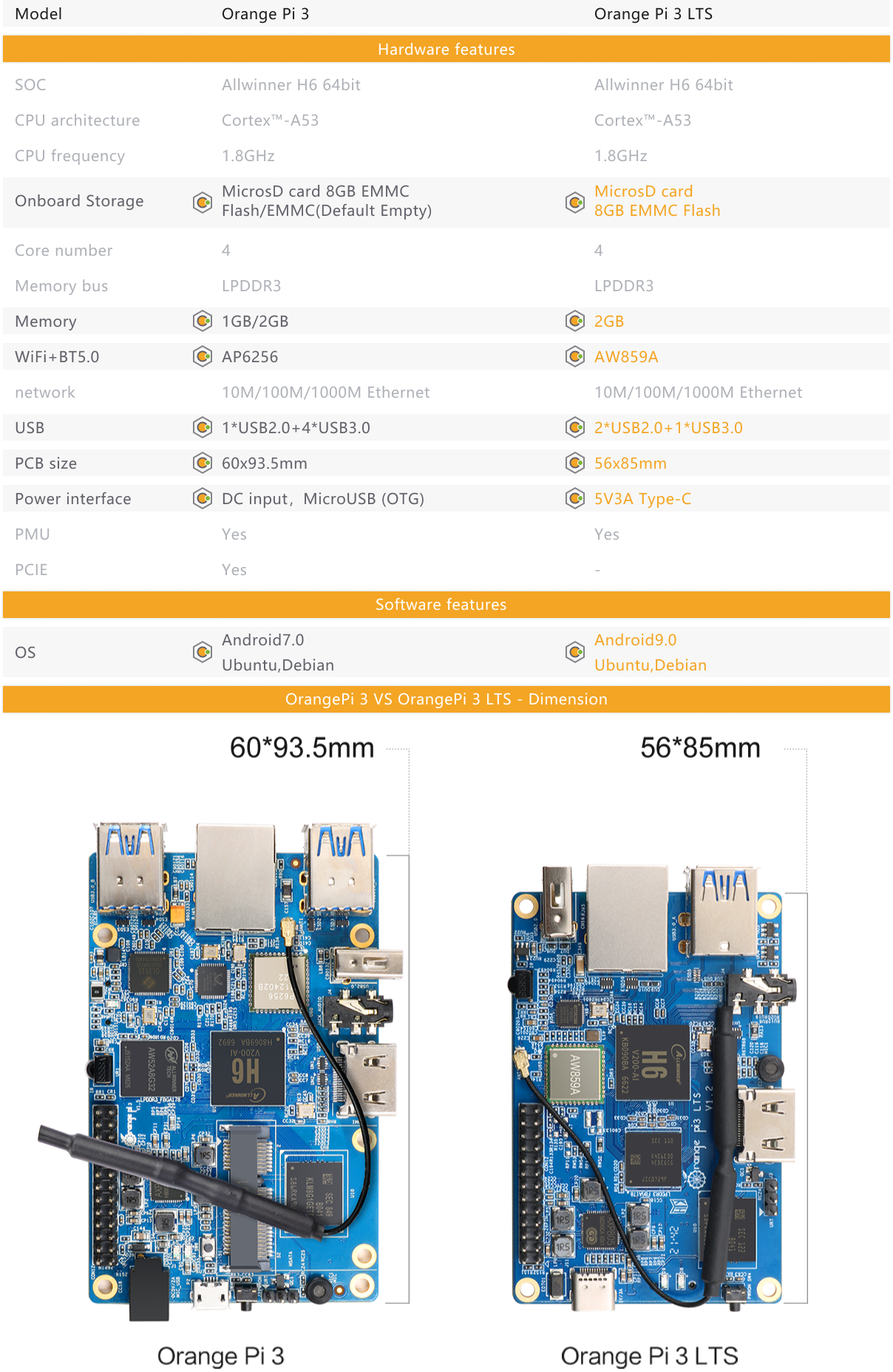

Model | Orange Pi 3 | Orange Pi 3 LTS |
| Hardware features | ||
SOC | Allwinner H6 64bit | Allwinner H6 64bit |
CPU architecture | Cortex™-A53 | Cortex™-A53 |
CPU frequency | 1.8GHz | 1.8GHz |
Onboard Storage |   MicrosD card 8GB EMMC Flash/EMMC(Default Empty) | MicrosD card 8GB EMMC Flash |
Core number | 4 | 4 |
Memory bus | LPDDR3 | LPDDR3 |
Memory | 1GB/2GB | 2GB |
WiFi+BT5.0 | AP6256 | 859 |
network | 10M/100M/1000M Ethernet | 10M/100M/1000M Ethernet |
USB | 1*USB2.0+4*USB3.0 | 2*USB2.0+1*USB3.0 |
PCB size | 60x93.5mm | 56x85mm |
Power interface | DC input，MicroUSB (OTG) | 5V3A Type-C |
PMU | Yes | Yes |
PCIE | Yes | - |
| Software features | ||
OS | Android7.0 Ubuntu,Debian | Android9.0 Ubuntu,Debian |
| OrangePi 3 VS OrangePi 3 LTS - Dimension | ||
Model | |
Orange Pi 3 | Orange Pi 3 LTS |
| Hardware features | |
SOC | |
Allwinner H6 64bit | Allwinner H6 64bit |
CPU architecture | |
Cortex™-A53 | Cortex™-A53 |
CPU frequency | |
1.8GHz | 1.8GHz |
Onboard Storage | |
 MicrosD card 8GB EMMC Flash/EMMC(Default Empty) | MicrosD card 8GB EMMC Flash |
WiFi+BT5.0 | |
| AP6256 | 859 |
network | |
10M/100M/1000M Ethernet | 10M/100M/1000M Ethernet |
USB | |
| 1*USB2.0+4*USB3.0 | 2*USB2.0+1*USB3.0 |
PCB size | |
| 60x93.5mm | 56x85mm |
Power interface | |
| DC input，MicroUSB (OTG) | 5V3A Type-C |
PMU | |
Yes | Yes |
PCIE | |
Yes | - |
| Software features | |
OS | |
| Android7.0,Ubuntu,Debian | Android9.0,Ubuntu,Debian |
| OrangePi 3 VS OrangePi 3 LTS - Dimension | |
Hardware specification
| CPU | Allwinner H6 Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor |
| GPU | • High-performance multi-core GPU Mali T720 • OpenGL ES3.1/3.0/2.0/1.1 • Microsoft DirectX 11 FL9_3 • ASTC(Adaptive Scalable Texture Compression) • Floating point operation greater than 70 GFLOPS |
| Power management chip | AXP805 |
| RAM | 2GB LPDDR3 (shared with GPU) |
| Onboard Storage | • Micro SD card slot • 8GB EMMC Flash |
| Onboard Network | • YT8531C Chip • Support 10/100M/1000M Ethernet |
| Onboard WiFi+Bluetooth | • 859 Chip • Support IEEE 802.11 a/b/g/n/ac • Support BT5.0 |
| Video Output | • HDMI 2.0a • TV CVBS Output |
| Audio output | • HDMI Output • 3.5mm Audio Port |
| Power Source | 5V3A Type-C |
| USB | 1* USB 3.0 HOST、2* USB 2.0 HOST |
| Low-level peripherals | 26pin connector with1* I2C, 1*SPI, 1*UART &Multiple GPIO Ports |
| Debug serial port | UART-TX、UART-RX & GND |
| Button | Power Button (SW4) |
| LED | Power LED& Status LED |
| IR Receiver | Support IR Remote Control |
| Supported OS | Android 9.0、Ubuntu、Debian |

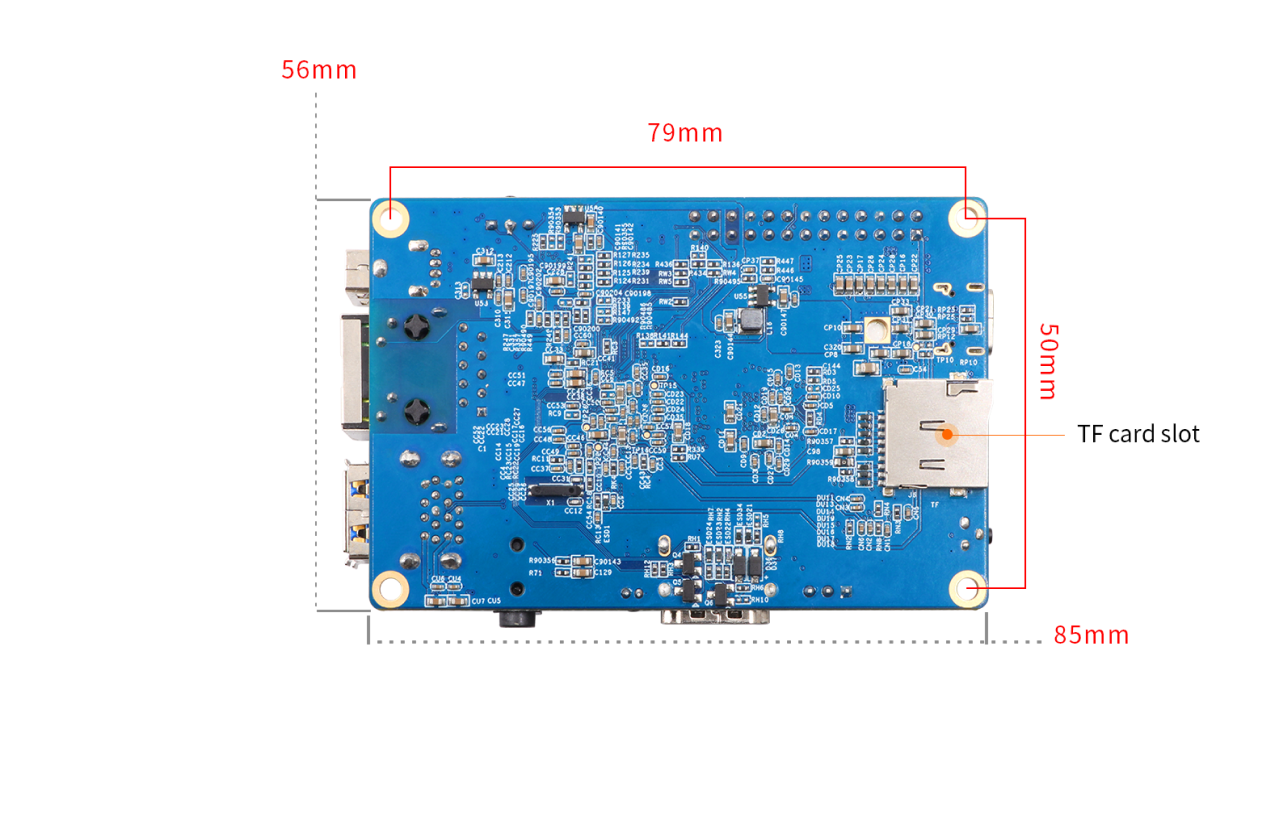

Appearance specification introduction
| Dimension | 56mm*85mm |
| Weight | 45g |

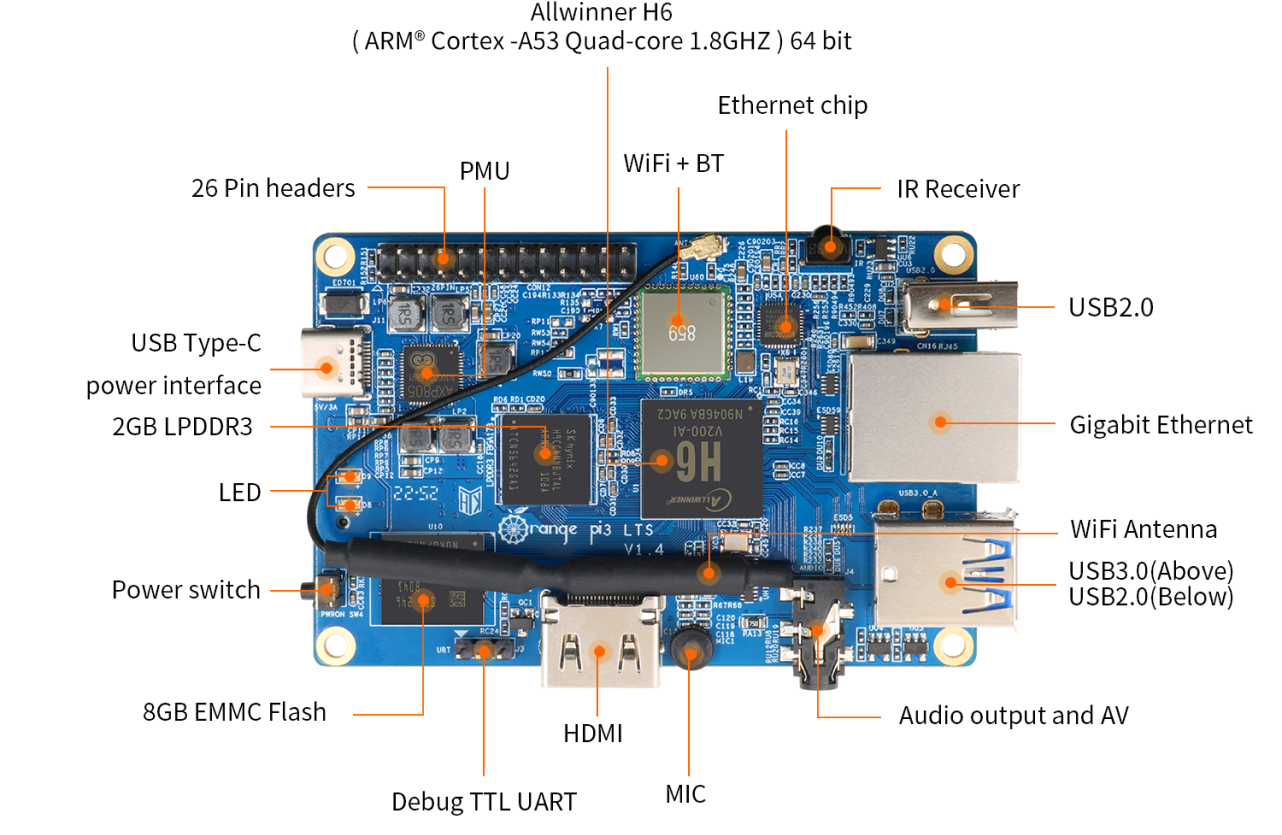

Top view
Bottom view

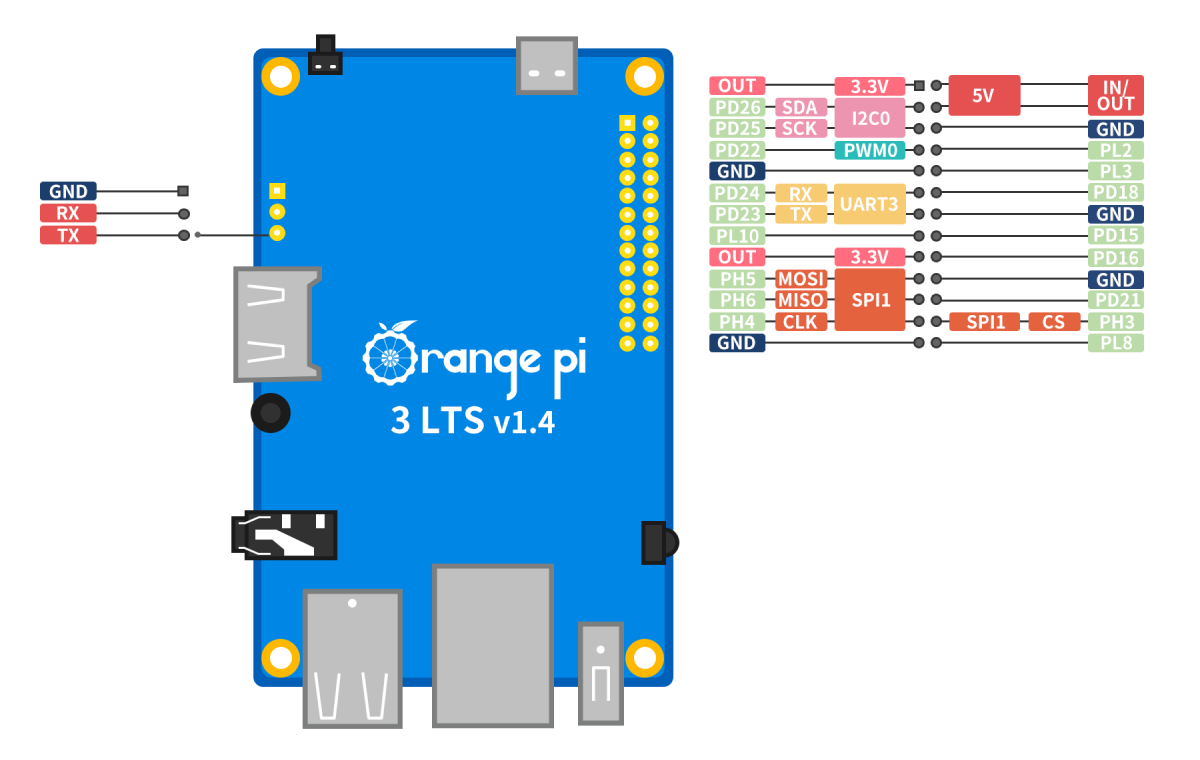

Orange Pi 3 LTS v1.2 pinout diagram
Completely open source maker artifact
Orange Pi 3 LTS runs Android
Orange Pi 3 LTS runs Ubuntu
Orange Pi 3 LTS runs Debian
Product display

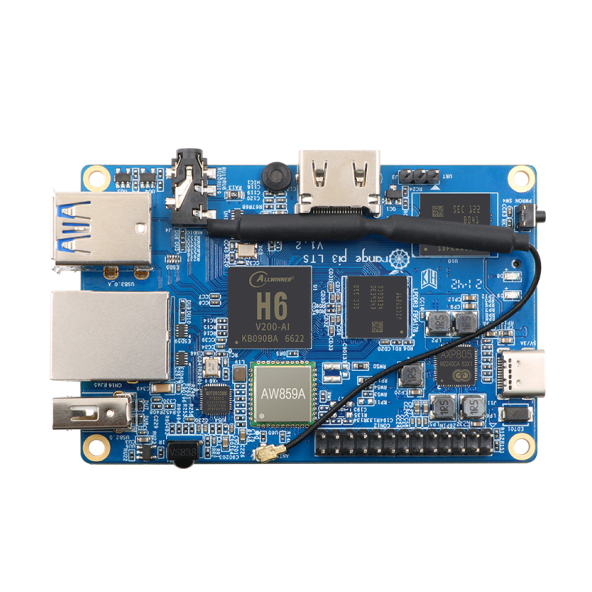

Front

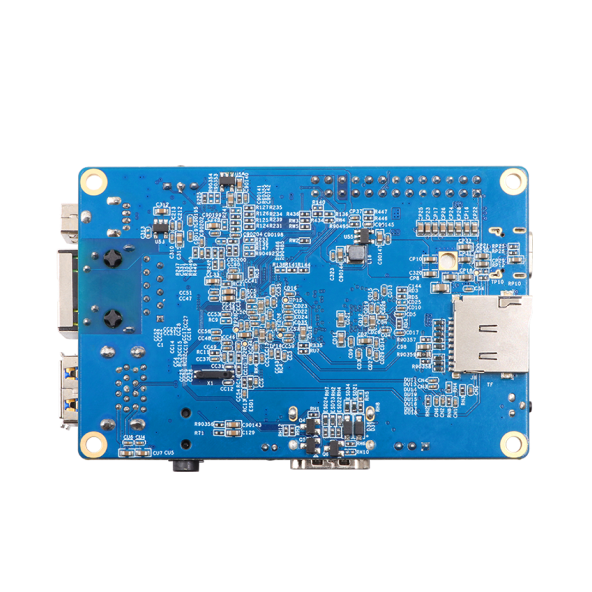

Back
45° angle
45° angle
What can l do with Orange Pi 3 LTS?
You can use it to build-…
Pretty much anything else, because Orange Pi 3 LTS is open source
