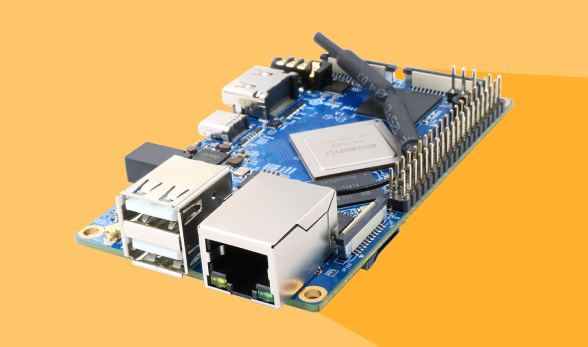

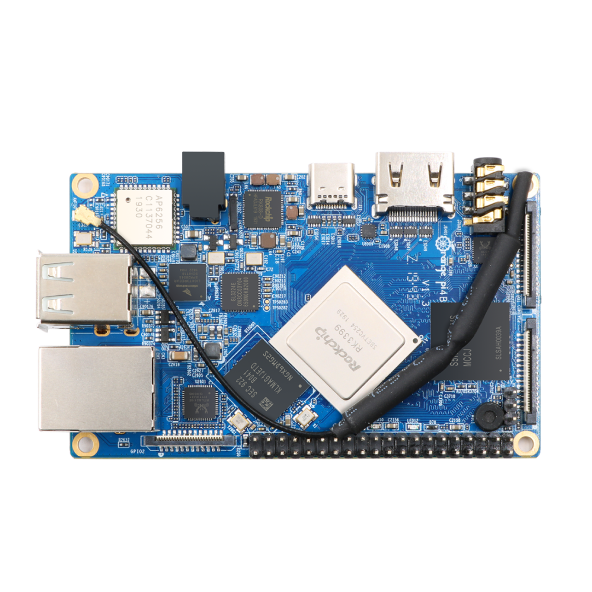

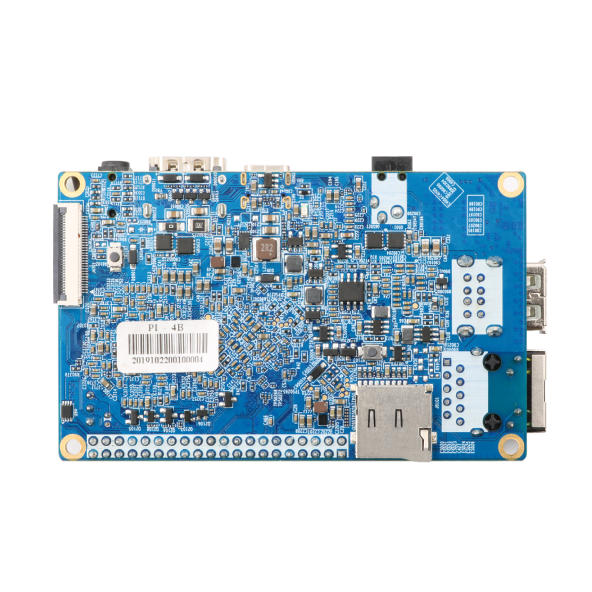

Orange Pi 4B

Orange Pi 4B is an open-source single-board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 91X55.7mm.

Product introduction

WiFi
HDMI output
16GB EMMC Flash
CSI camera port
Gigabit Ethernet port
Type-C
Rockchip RK3399
40pin headers
Multiple operating systems
Bluetooth
TF card
USB 2.0

Orange Pi 4B uses the Allwinner H6 SoC, and has 2GB LPDDR3 SDRAM, 8GB EMMC Flash. It can run Android 9,Ubuntu,Debian. Orange Pi 4B offers a range of different ports, including HDMI output, 26pin headers, Gbps Ethernet port,1*USB 3.0, 2* USB2.0，etc. It is powered through Type-C. It is a good choice for applications that need strong networking perfomance.

Orange Pi 4B is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

WiFi+Bluetooth
Dual-band wireless WiFi+Bluetooth 5.0, Fast networking
Orange Pi 4B comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.
Rich ports with powerful performance
MIPI-CSI camera interface, USB Type-C port, HDMI 2.0 port，etc.

16GB EMMC Flash

16GB EMMC Flash to meet users' higher demand for storage capacity

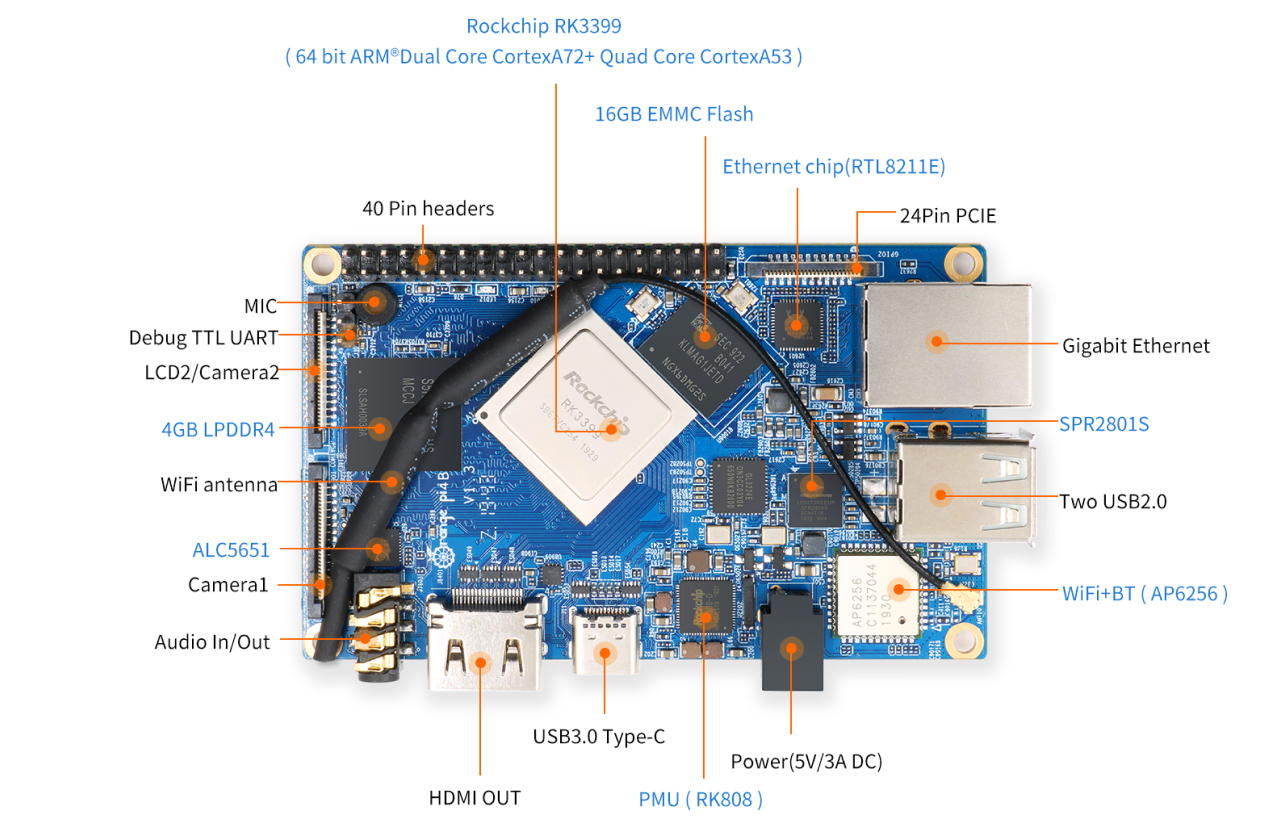

Hardware specification

CPU	• Rockchip RK3399 (28nm HKMG process) • 6-core ARM® 64-bit processor ,main frequency speeds up to 1.8GHz • Based on the large and small size core architecture of big.LITTLE : • Dual-core Cortex-A72 (large core) + Quad-core Cortex-A53 (small core)
GPU	• Mali-T864 GPU • Supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1,OpenCL, DX11, support AFBC
NPU	• SPR2801S, adopt MPE and APiM unique AI architecture • Typical calculation power 2.8Tops, with 9.3Tops/W ultra high performance
Memory+Onboard Storage	Dual 4GB LPDDR4 + 16GB EMMC flash
Onboard WiFi+Bluetooth	AP6256, IEEE 802.11 a/b/g/n/ac, BT5.0
Network	10/100/1000Mbps Ethernet ( Realtek RTL8211E )
Audio	• Output: 3.5mm Jack and HDMI2.0a • Input: MIC
Video Outputs	• 1 x HDMI 2.0 ( Type-A ), Supports 4K@60fps output • 1 x DP 1.2 (Display Port) , Supports 4K@60fps output • Supports Dual MIPI-DSI （4 lines per channel）
Camera	2 x MIPI-CSI(MIPI_RX0、MIPI_TX1/RX1)
USB	2 x USB2.0 HOST，1 x USB3.0 Type-C
RTC	Support RTC, on-board battery backup interface
Debug UART	3pins Debug UART
GPIO	• GPIO1 40 pins（1 x I2S、2 x I2C、1 x SPI/UART、8 x GPIO） • GPIO2 24pin PCIE port
Key	Upgrade Key & Reset Key
Power Source	DC 5V/3A， TYPE-C 5V/3A
LED	Power led & Status led

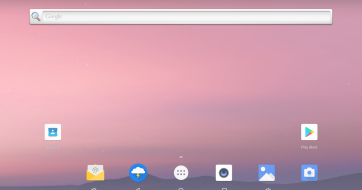

OS Support	Android 8.1、Ubuntu 16.04、Ubuntu 18.04、Debian 9
PCB	8 Layer

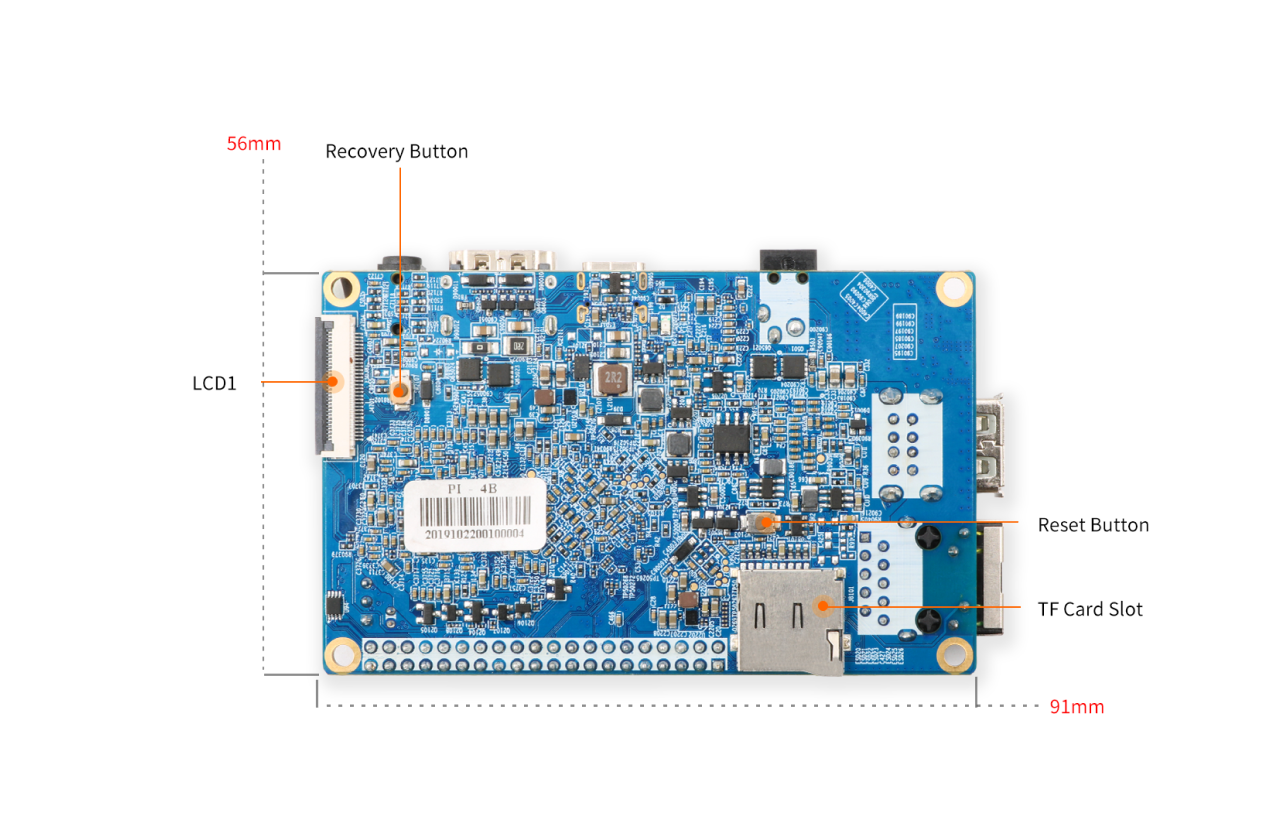

Dimension	91mm*55.7mm
