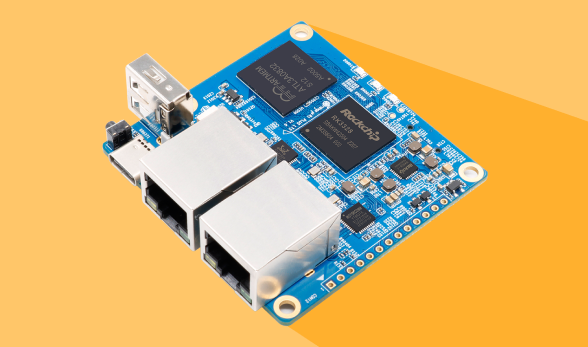

Orange Pi R1 Plus LTS

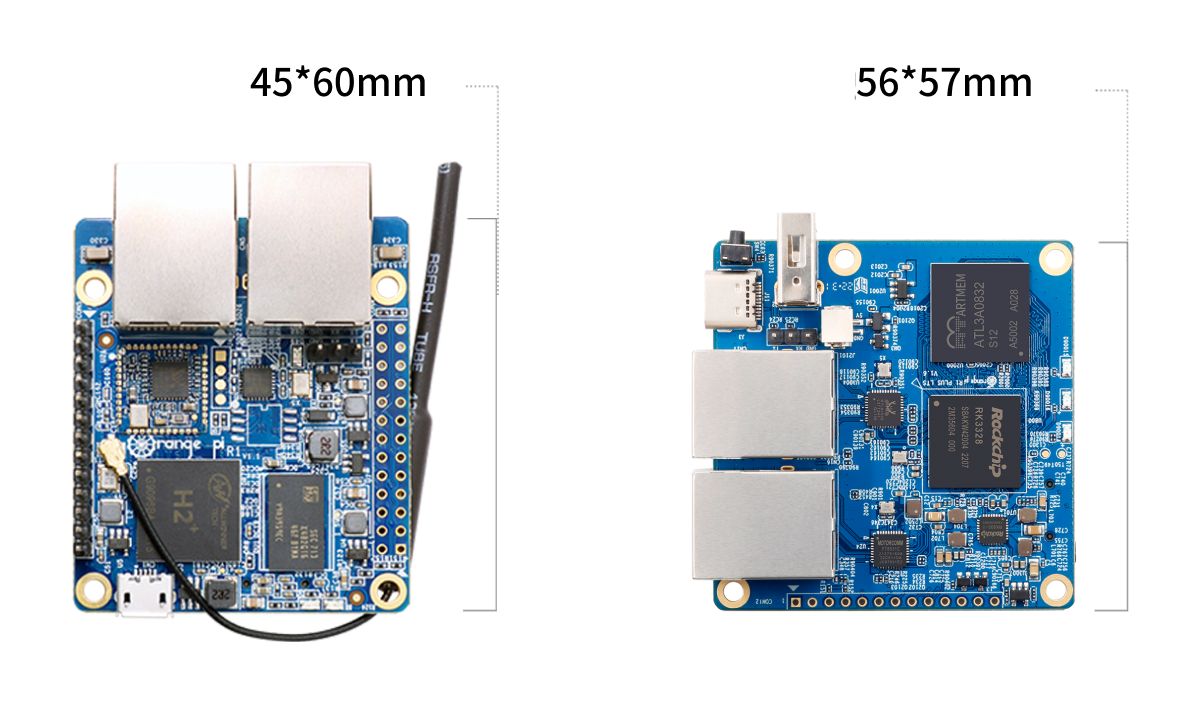

Orange Pi R1 Plus LTS is an open-source single-board computer with Dual Gigabit Ethernet ports. It is highly compact with a dimension of 56X57mm. It can run OpenWRT, Ubuntu, and Debian.

Product introduction

RK3328 SoC
USB 2.0
Cortex-A53 64-Bit
TF card
1GB LPDDR3 SDRAM
13pin headers etc
Type-C
OpenWRT system

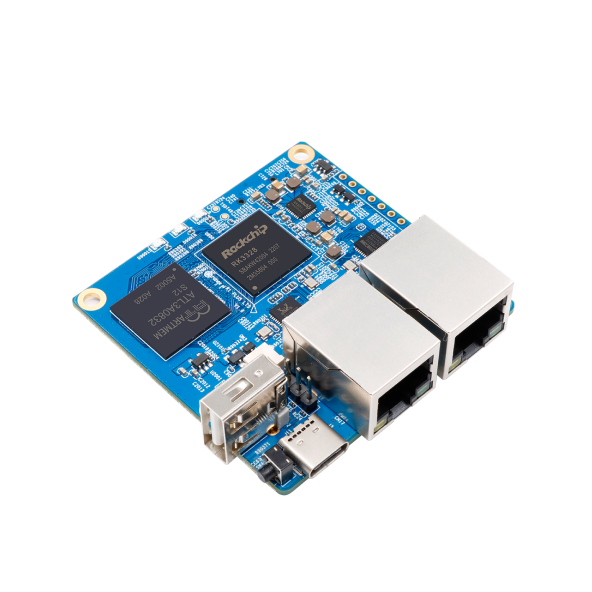

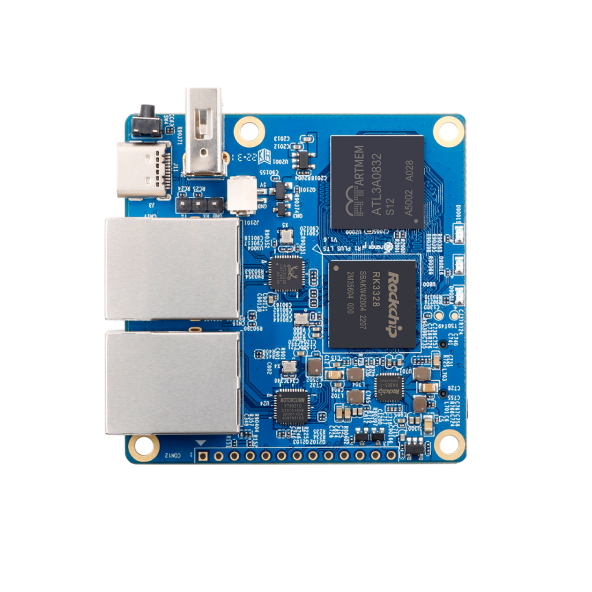

Orange Pi R1 Plus LTS uses the Rockchip RK3328 SoC, Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz and 1GB LPDDR3 SDRAM. It integrates cooling fan connector, USB 2.0 port, TF card slot, 13pin headers etc. It is powered through Type-C. It is suitable for industrial control needs.

Orange Pi R1 Plus LTS is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Support for OpenWRT system

OpenWRT is a highly modular, highly automated embedded Linux system with powerful networking components and scalability, often used in industrial control devices, telephones, small robots, smart homes, routers, and VOIP devices.

• At the same time, it supports Ubuntu, Debian and other operating systems, which can be used for office learning, gaming and entertainment, software development, intelligent embedding and so on.

Orange Pi R1 Plus LTS runs OpenWRT

Rockchip RK3328 SoC，more powerful

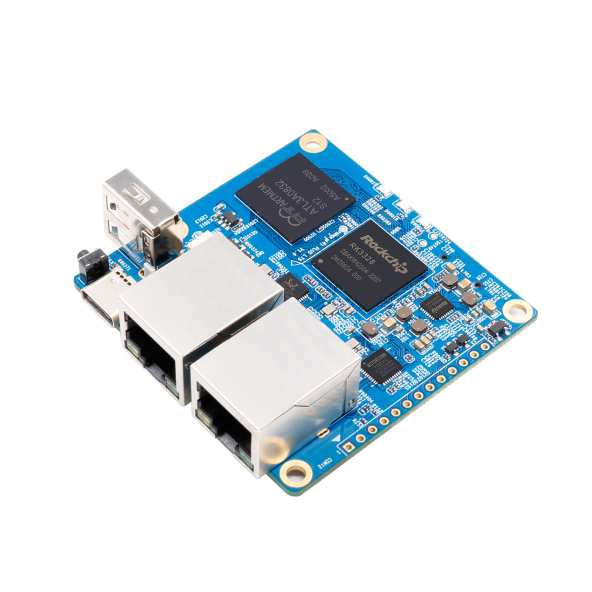

Dual Gigabit Ethernet ports, faster

Compared to Orange Pi R1 PLUS, same performance but cheaper

Hardware specification

CPU	• Rockchip RK3328 • Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz
GPU	• Mali-450MP2 • Supports OpenGL ES 1.0/2.0
Power management chip	RK805
Memory(SDRAM)	1GB LPDDR3(Not Shared With GPU)
Onboard Storage	• Micro-SD Card slot • 16MB SPI Flash
Onboard Network	• 10M/100M/1000M Ethernet (YT8531C) • 10M/100M/1000M USB Ethernet (RTL8153B)
Video Output	TV CVBS output（Via 13pin interface board）
Audio output	3.5mm audio port（Via 13pin interface board）
Power Source	USB Type-C Interface 5V/2A Input
USB	1x USB 2.0 HOST
Low-level peripherals	13pin header with IR pin、Tv-out、AUDIO(no MIC), 2xUSB2.0（not support）and 1 GPIO port Note: 13Pin Headers Will Not Be Welded
Debug serial port	UART-TX、UART-RX and GND
Button	1x Reset Button
Fan interface	1x cooling fan interface (5V)
LED	Power LED & Status LED
Supported OS	OpenWRT、Ubuntu、Debian
