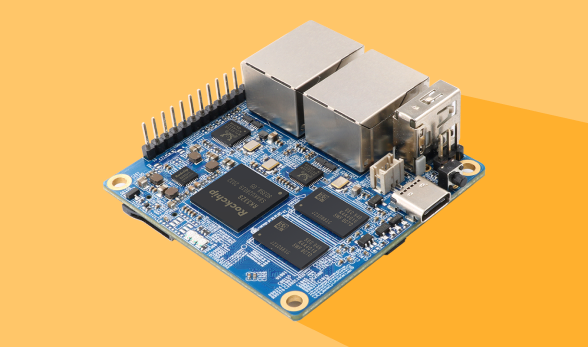

Orange Pi R1 Plus

Orange Pi R1 Plus is an open-source single-board computer with Dual Gigabit Ethernet ports. It is highly compact with a dimension of 56X57mm. It can run Android 9,Ubuntu,Debian, OpenWRT.

Product introduction

Rockchip RK3328
1GB DDR4 SDRAM
USB 2.0
Main frequency speeds up to 1.5GHz
Cortex-A53
TF card
Type-C
13pin headers
Dual Gigabit Ethernet ports
Multiple operating systems

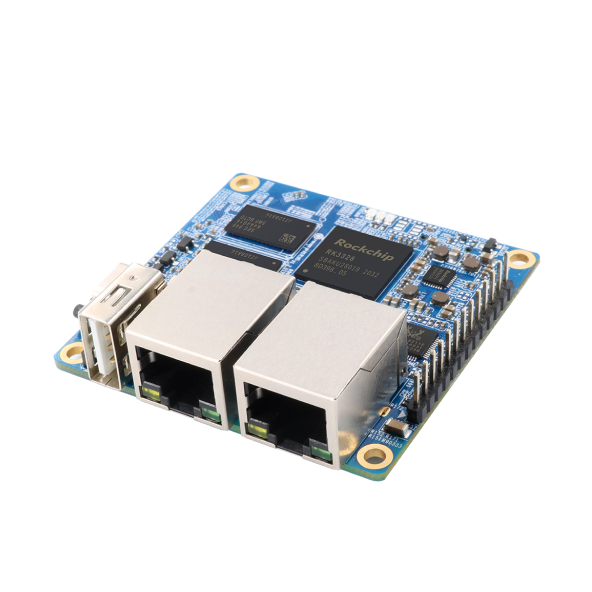

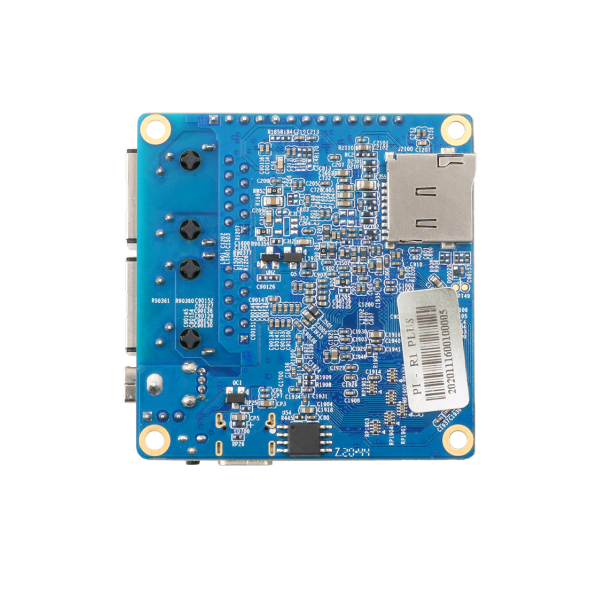

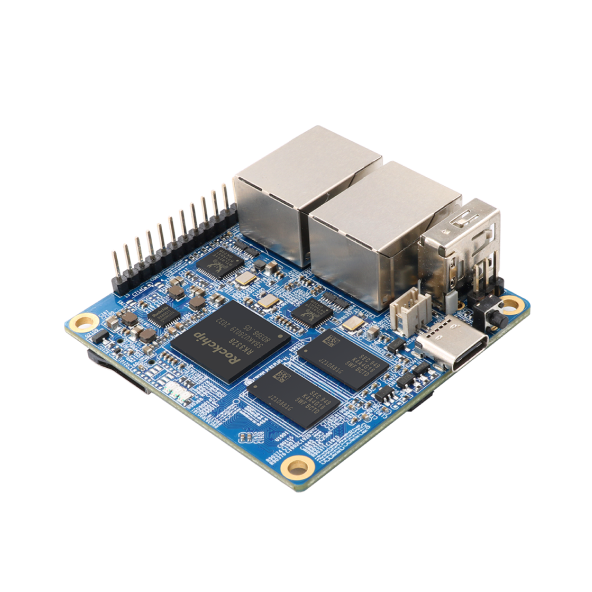

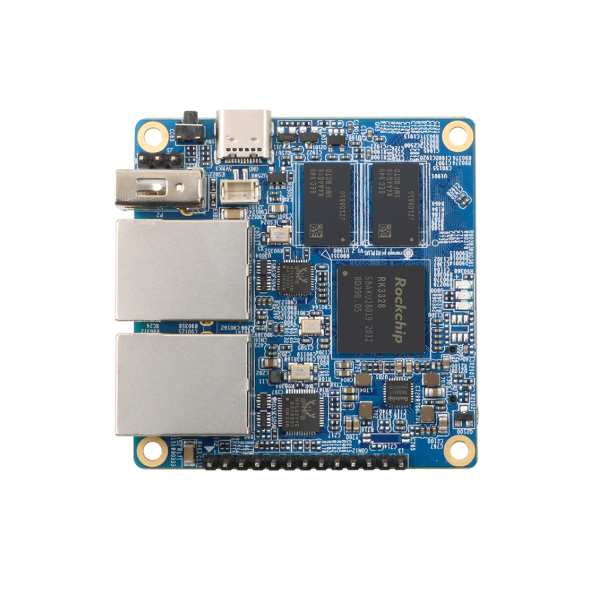

Orange Pi R1 Plus uses the Rockchip RK3328 SoC, With Quad-core ARM Cortex-A53 64-bit processor, main frequency speeds up to 1.5GHz, and 1GB DDR4 SDRAM. It integrates cooling fan connector, USB 2.0 port, TF card slot, 13pin headers etc. It is powered through Type-C. It is suitable for industrial control needs.

Orange Pi R1 Plus is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

Dual Gigabit Ethernet ports, faster
Rockchip RK3328 SoC，
more powerful

1GB DDR4

1GB DDR4, sufficient for running various applications, smooth & elegant.

Orange Pi R1 vs Orange Pi R1 Plus

Model	Orange Pi R1	Orange Pi R1 Plus
Hardware features
SOC	Allwinner H2+32bit	Rockchip RK3328 64bit
CPU architecture	Cortex-A7	Cortex-A53
CPU frequency	1.2GHz	1.5GHz
Onboard Storage	· MicroSD card · 16MB SPI Flash	· MicroSD card · 16MB SPI Flash
Core number	4	4
Memory bus	DDR3	DDR4
Memory	256MB	1GB
WiFi	WiFi	-
Network	10M/100M Ethernet	10M/100M/1000M Ethernet
USB	USB2.0	USB2.0
PCB size	45x60mm	56x57mm
Power interface	Micro USB	Type-C
PMU	-	Yes
Fan interface	-	Yes
Software features
OS	Android4.4 Ubuntu,Debian	Android 9 Ubuntu,Debian ,OpenWRT

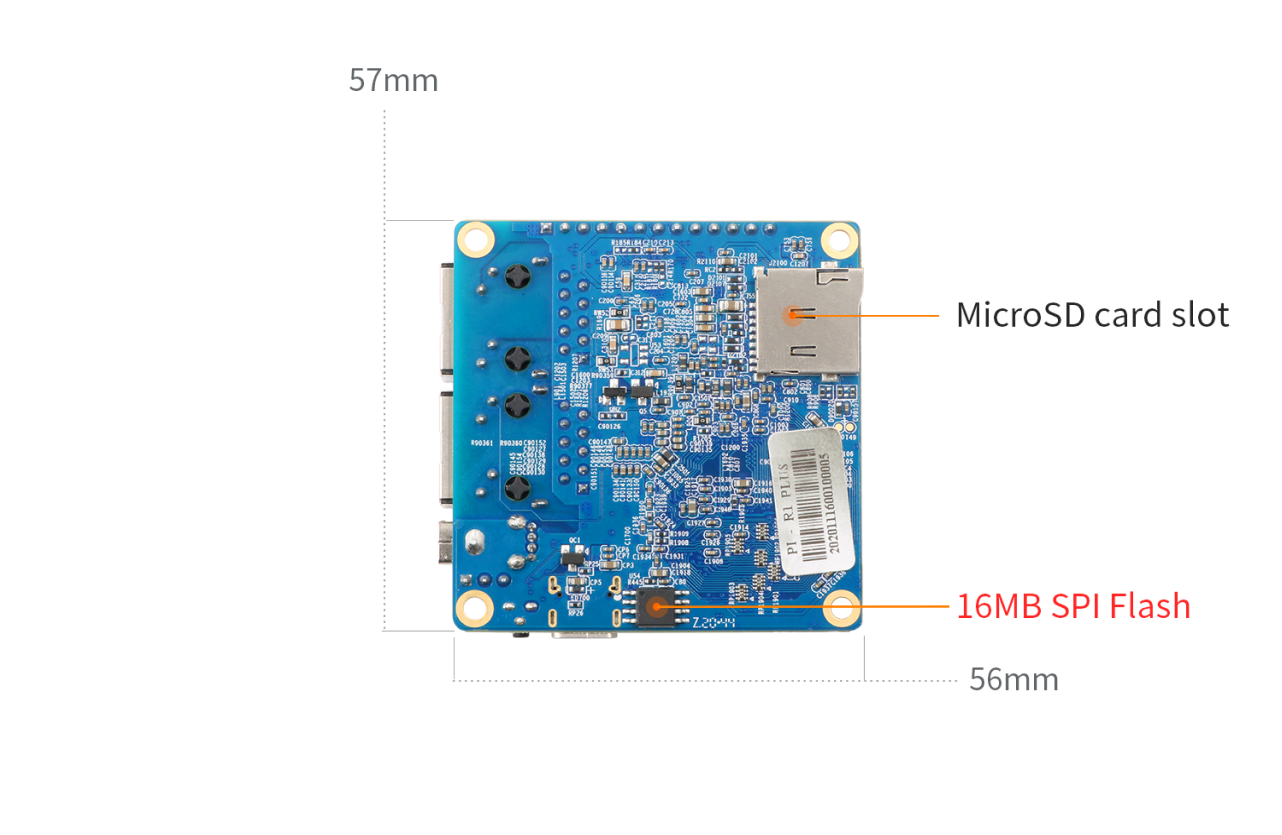

OrangePi R1 VS OrangePi R1 Plus - Dimension

Model
Orange Pi R1	Orange Pi R1 Plus
Hardware features
SOC
Allwinner H2+32bit	Rockchip RK3328 64bit
CPU architecture
Cortex-A7	Cortex-A53
CPU frequency
1.2GHz	1.5GHz
Onboard Storage
MicroSD card 16MB SPI Flash	MicroSD card 16MB SPI Flash
Core number
4	4
Memory bus
DDR3	DDR4
Memory
256MB	1GB
WiFi+BT5.0
WiFFi	-
network
10M/100M Ethernet	10M/100M/1000M Ethernet
USB
USB2.0	USB2.0
PCB size
45x60mm	56x57mm
Power interface
Micro USB	Type-C
PMU
-	Yes
PCIE
-	Yes
Software features
OS
Android4.4 Ubuntu,Debian	Android 9 Ubuntu,Debian ,OpenWRT
OrangePi R1 VS OrangePi R1 Plus - Dimension

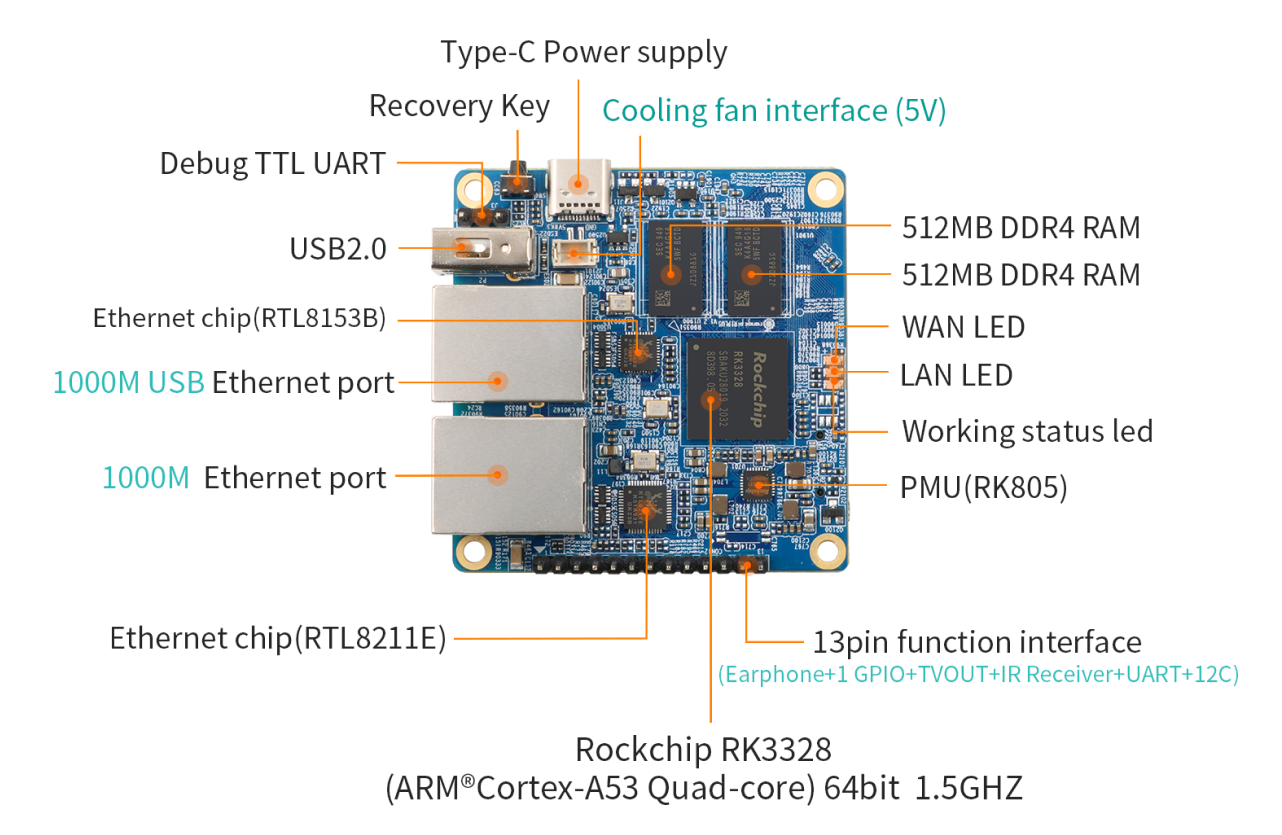

Hardware specification

CPU	• Rockchip RK3328 • Quad-core ARM Cortex-A53 64-bit processor, main frequency speeds up to 1.5GHz
GPU	• Mali-450MP2 • Supports OpenGL ES 1.0/2.0
Power management chip	RK805
Memory(SDRAM)	1GB DDR4（ shared with GPU）
Onboard Storage	• Micro-SD Card slot • 16MB SPI Flash
Onboard Network	• 10M/100M/1000M Ethernet （RTL8211E） • 10M/100M/1000M USB Ethernet （RTL8153B）
Video Output	TV CVBS output（Via 13pin interface board）
Audio output	3.5mm audio port（Via 13pin interface board）
Power Source	USB Type C interface 5V2A input
USB	1x USB 2.0 HOST

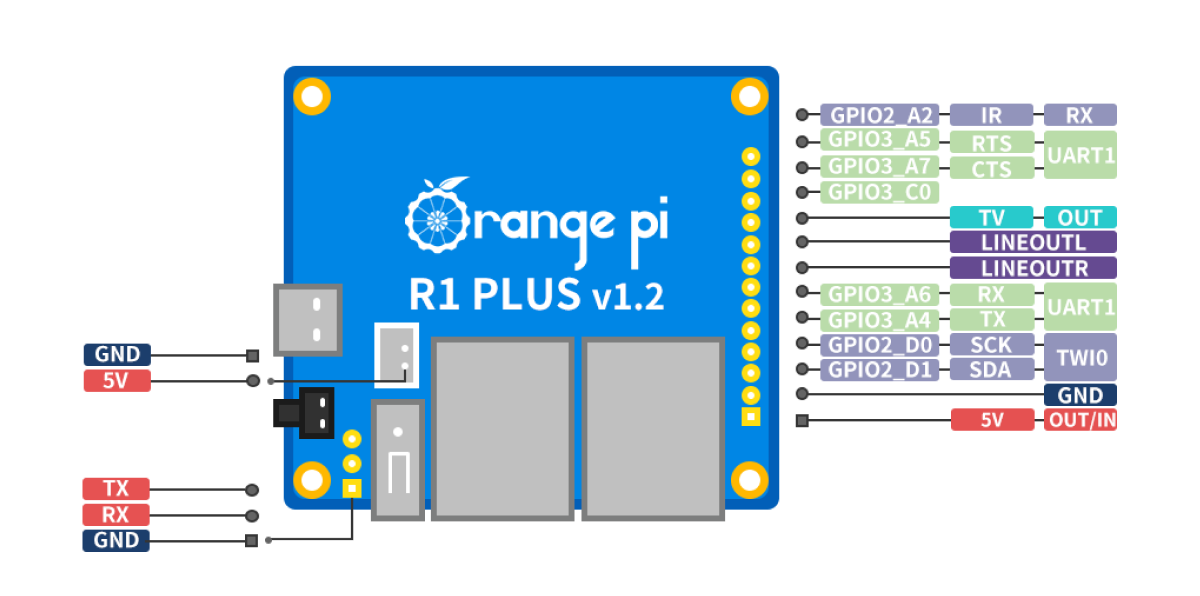

Low-level peripherals	13pin header with IR pin、Tv-out、AUDIO(no MIC) 2xUSB2.0（not support）and 1 GPIO port
Debug serial port	UART-TX、UART-RX and GND
Button	1x Reset Button
Fan interface	1x cooling fan interface (5V)
LED	Power led & Status led
IR receiver	Support IR remote control (via 13pin interface board)
Supported OS	Android 9、Ubuntu、Debian、OpenWRT
