Orange Pi 5

From Wiki-Orange Pi
Jump to: navigation, search

Introduction


Orange Pi 5 uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB/32GB (LPDDR4/4x), and up to 8K display processing capability.
Orange Pi 5 provides abundant interfaces, including HDMI output, GPIO interface, M.2 PCIe2.0, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5 supports Orange Pi OS(Droid), the official operating system developed by Orange Pi, as well as Android12 and Debian11.

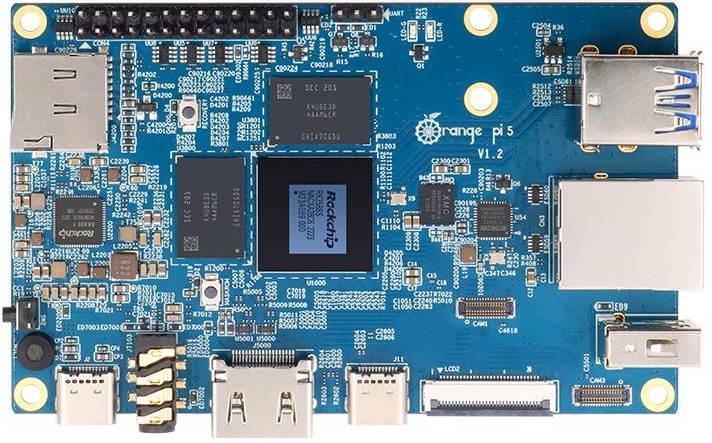

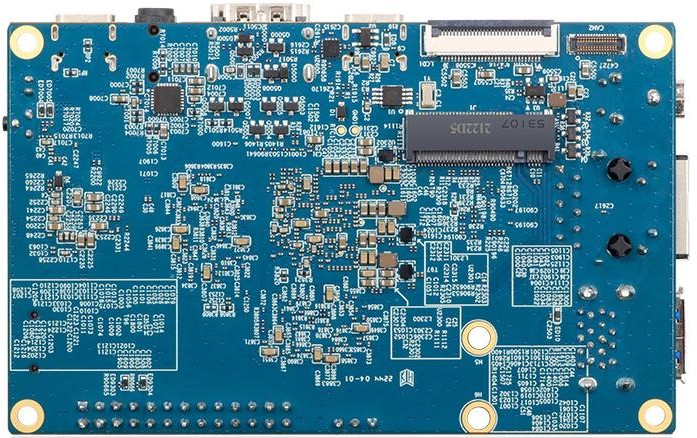

Layout




Features


  • Rockchip RK3588S


A new generation AIoT chip
Using 8nm LP process, it is faster and consumes less power, bringing superior performance to various AI application scenarios.

  • Up to 32GB RAM


Meet the application requirements of products with large RAM and large storage.

  • 8K video codec for clearer images


Up to support 8K @ 60fps, the powerful video codec allows for clearer images and more detailed picture quality.

  • Gigabit Ethernet


On-board 1000Mbps Ethernet for stronger and more stable network connection and higher transmission speed.

  • Rich interfaces, easy to expand


Gathering all kinds of popular interfaces such as MIPI D-PHY, MIPI CSI, USB3.0, USB2.0, Type-C, HDMI2.1, M.2 PCIe2.0, Gigabit Ethernet, etc.

  • Multi-channel input and output


Support HDMI 2.1 8K video output, USB-C (DP1.4), dual MIPI D-PHY video output for multi-screen display, support three MIPI interface camera inputs.

  • Supports NVMe SSD hard drives for massive capacity expansion

The onboard M.2 PCIe 2.0 interface supports access to NVMe SSD hard drives to increase massive data storage space and meet the demand for fast read/write and large-capacity storage.

  • Supports Orange Pi OS(Droid)


With the self-designed Launcher, it provides users with the same operating habits as a normal computer to the maximum extent, and with the Google Play Store pre-installed, it can run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.

Uses


  • Wide range of application scenarios


It can be widely applied to tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.

CPU

Rockchip RK3399 (28nm HKMG process)
6-core ARM® 64-bit processor
Based on the large and small size core architecture of big.LITTLE:
Dual-core Cortex-A72 up to 1.8GHz (large core) + Quad-core Cortex-A53 up to 1.4GHz (small core)

SoC Rockchip RK3588S (8nm LP process)
CPU
  • 8-core 64-bit processor
  • Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
  • Arm Mali-G610 MP4 “Odin” GPU
  • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
  • 3D graphics engine and 2D graphics engine
NPU Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU RK806-1
RAM 4GB/8GB/16GB /32GB(LPDDR4/4x)
Memory
  • QSPI Nor FLASH 16MB
  • MicroSD (TF) Card Slot
  • M.2 M-KEY Socket
USB
  • USB3.0 × 1
  • USB2.0 × 2
  • Type-C (USB3.1) ×1
Video Output
  • HDMI2.1, up to 8K @60Hz
  • DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
  • 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera
  • MIPI CSI 4Lane
  • 2 * MIPI D-PHY RX 4Lane
Audio
  • CODEC: ES8388
  • 3.5mm headphone jack audio input/output
  • Input: Onboard MIC
  • HDMI 2.1 eARC
Ethernet 10/100/1000Mbps Ethernet
Expansion Port For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot
  • Support PCIe NVMe SSD
  • Support custom PCIe Wi-Fi6+BT5.0 module
Button
  • 1×MaskROM key
  • 1×Recovery key
  • 1×On/Off key

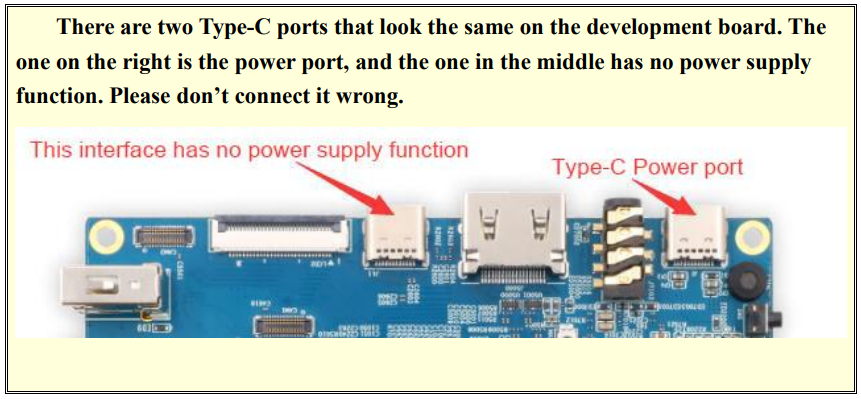

Power Source Support Type-C power supply, 5V @ 4A
LED
  • Power indicator: red
  • Status indicator: green
Debugging 3 Pin debug serial port (UART)

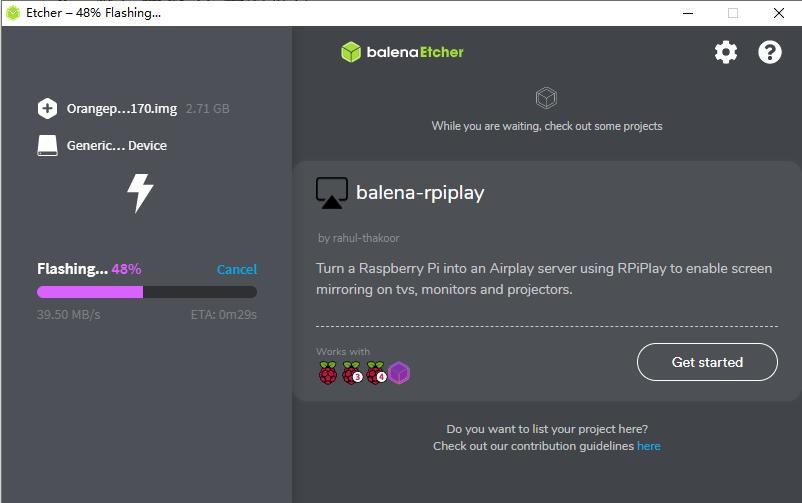

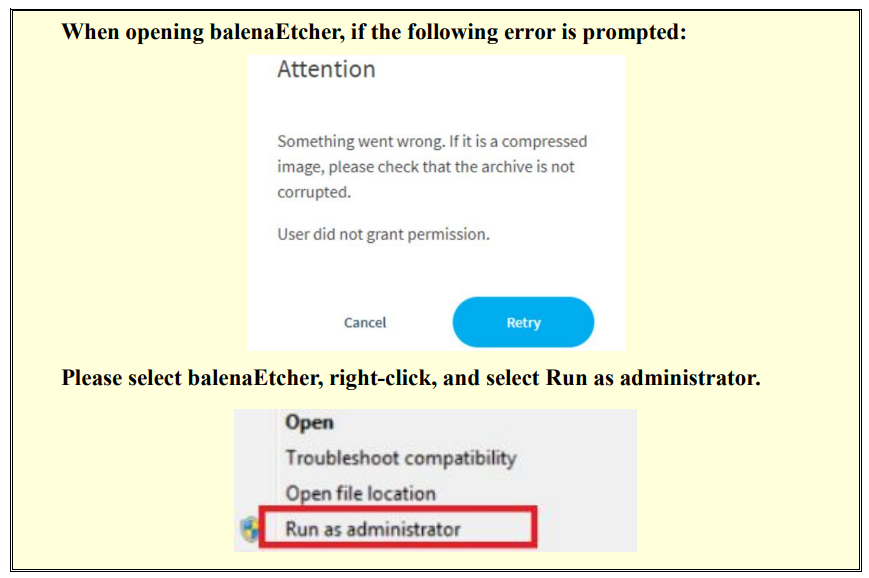

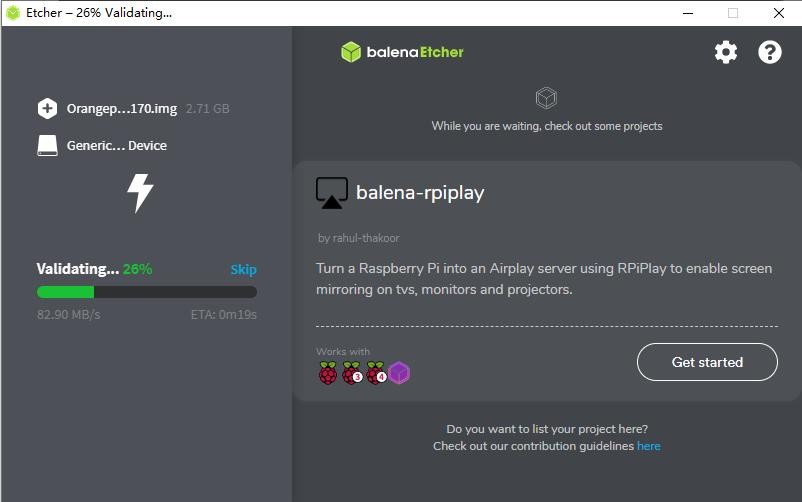

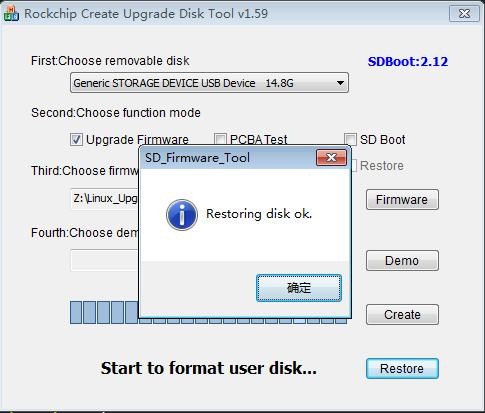

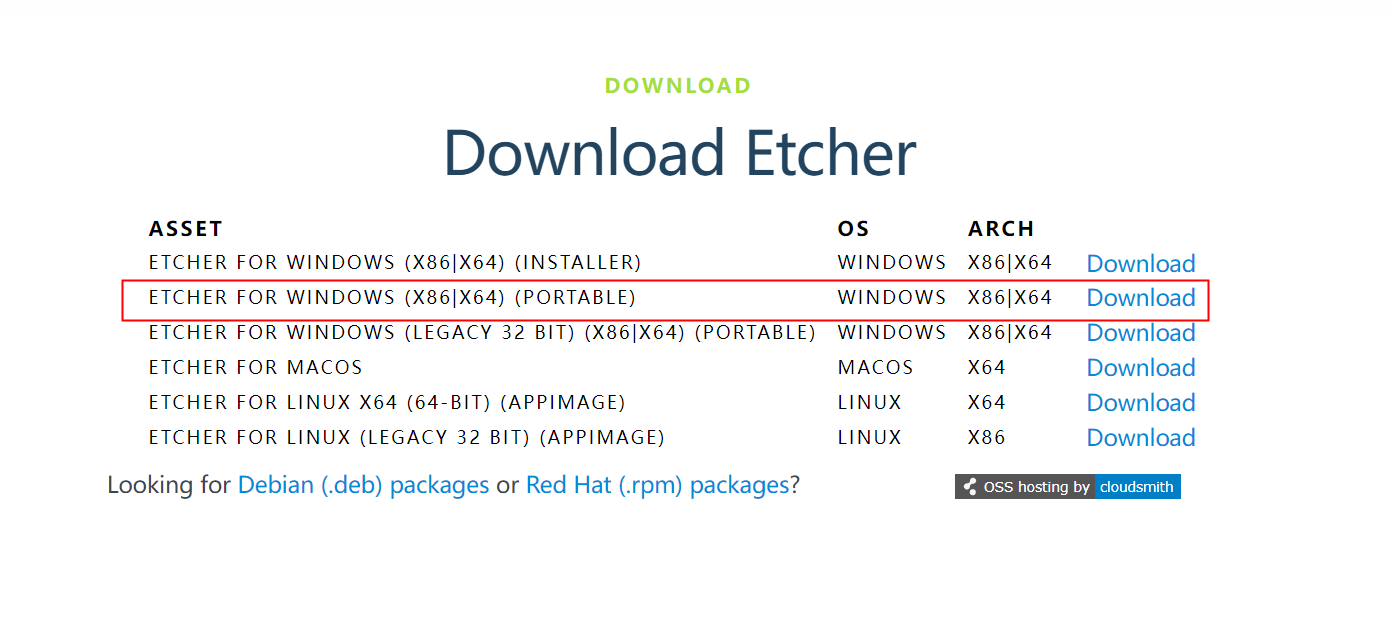

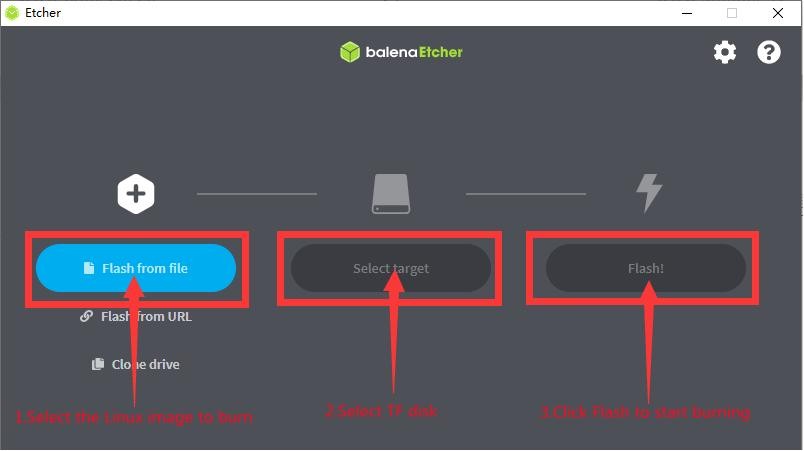

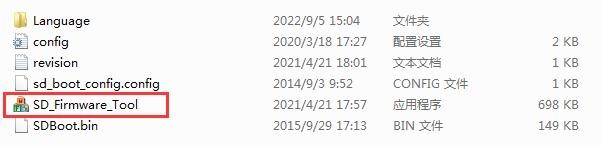

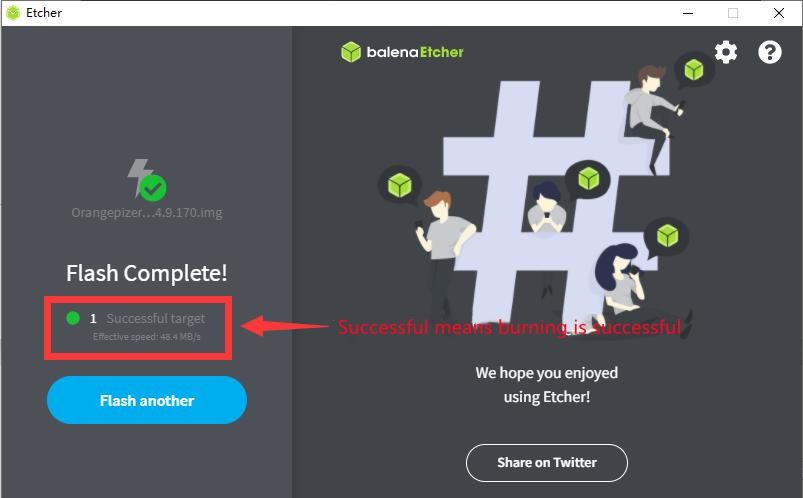

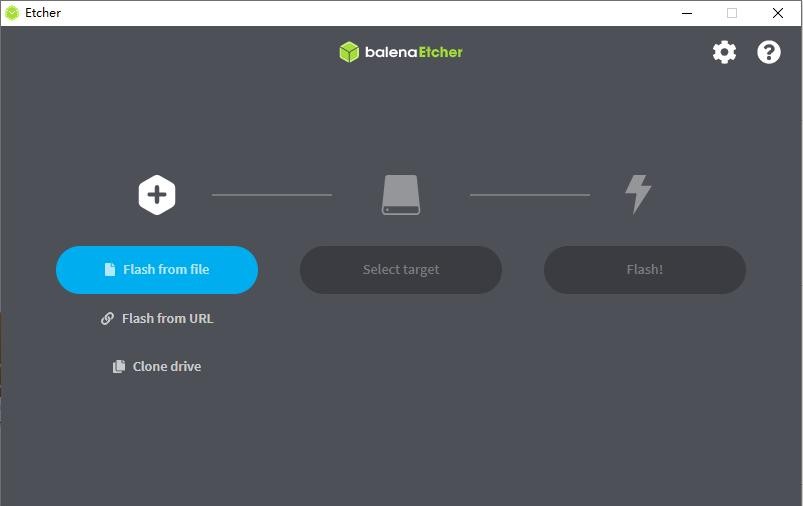

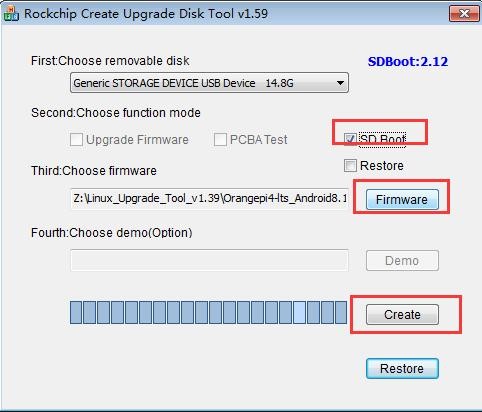

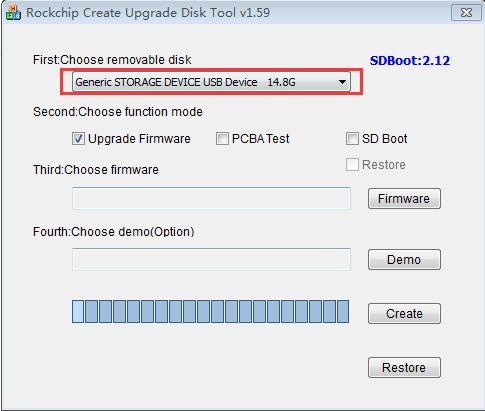

Supported OS Orangepi OS(Droid)、Orangepi OS(Arch)、Ubuntu、Debian、Android12
Dimensions 62mm*100mm
Weight 46g
